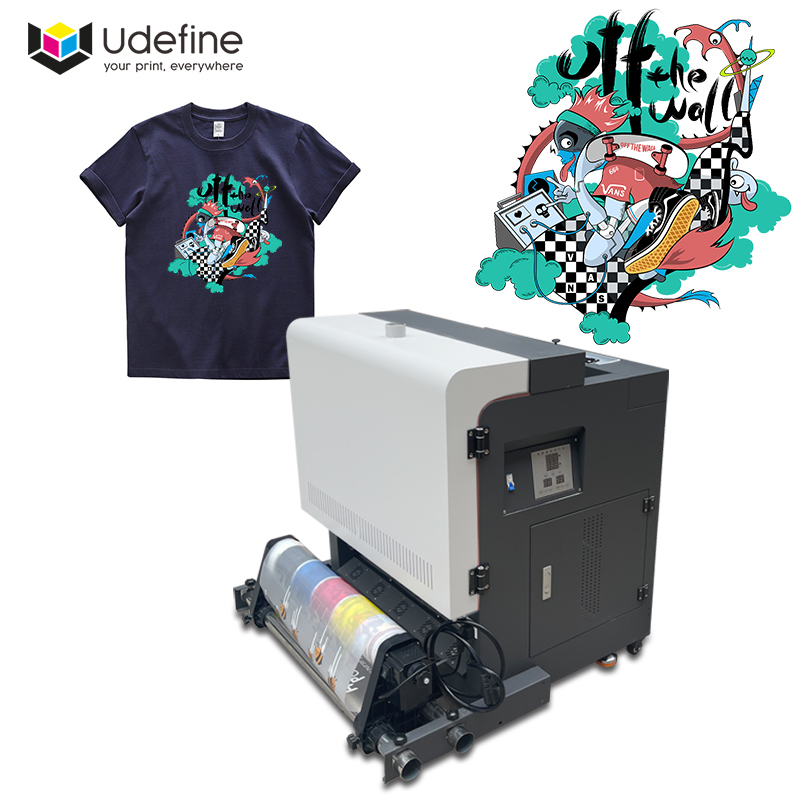

60cm i3200 XP600 1600 Printhead DTF Printer Direct to Film Printing Machine With Powder Shaker And Dryer Oven
Direct to Film Comprehensive Solution
Model: DTF-J6002
Print Head: Dual Epson I3200 /1600 / XP600 printhead
Max Print Size: 600mm Print Width.
Ink Type: FY/ FM/ FB/ FR/ FG/C/M/Y/K/W
New Feature of DTF-J6002
Higher Accuracy Printing
The new design and optimization of details will make the product quality from printing.

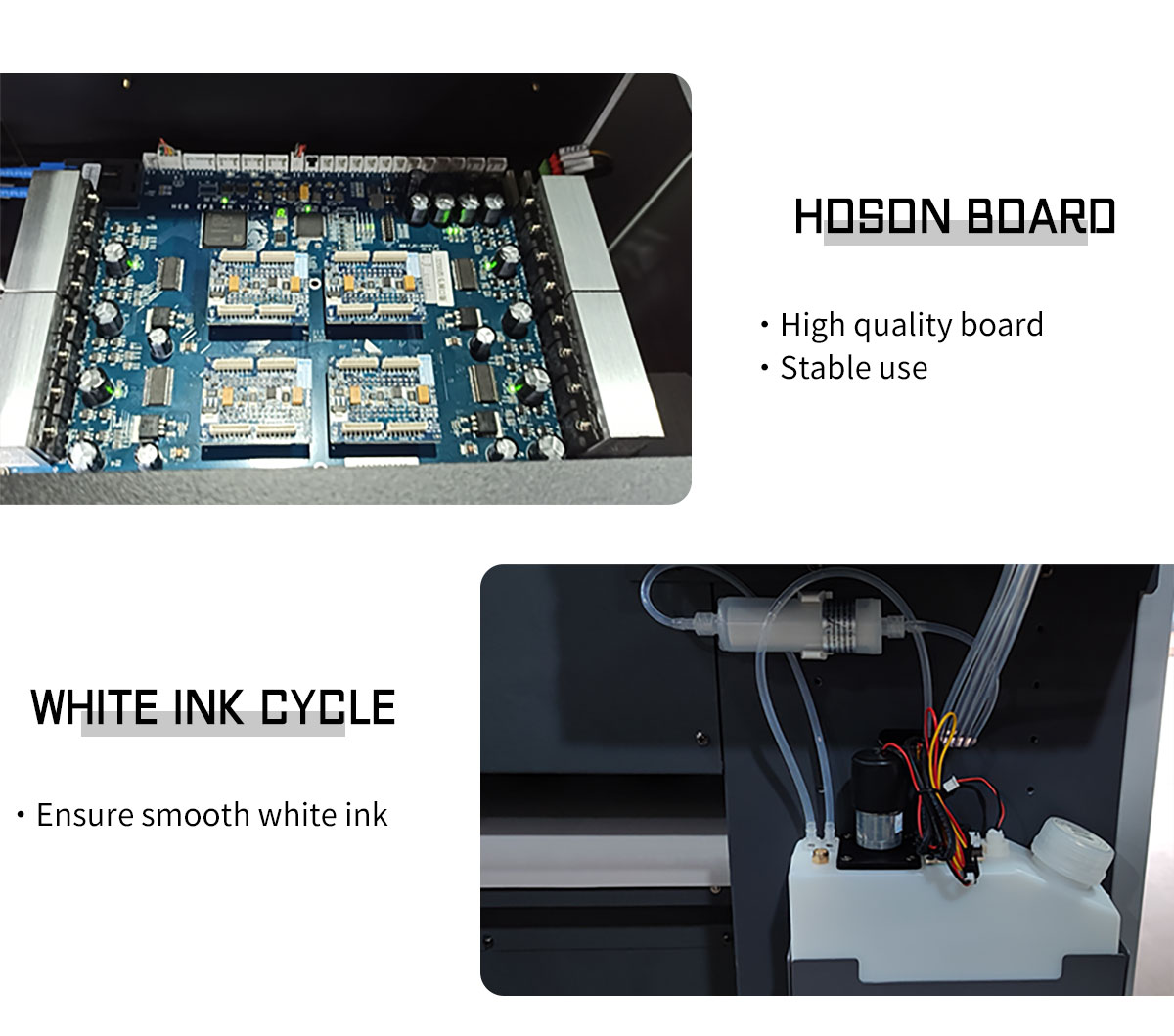

Stable Mainboard
Highly stable double printhead printing Variable ink drop, high saturation color reproduction
| Model | DTF-J6002 Film Printing Machine | |||
| Brand | Udefine | |||
| Printhead | EPSON XP600/1600/i3200 | Print speed | i3200 | 6Pass:11m2/h,8Pass:8m2/h |
| 1600 | 6Pass:5.5m2/h,8Pass:3.5m2/h | |||
| XP600 | 6Pass:3m2/h,8Pass:2.5m2/h | |||
| Number of print head | 2 | Printing accuracy | 360*1080dpi/720*720dpi/360*1800dpi/720*2400dpi | |
| Printer size(L*W*Hmm) | 1160(L)*500(W)*490(H)mm | Environmental conditions | Temperature, 20-28°C, Relative Humidity : 65%-75% | |
| Maximum printing width | A1/650mm | Ink type and configuration | Textile pigment ink, FY/ FM/ FB/ FR/ FG/C/M/Y/K/W | |
| Weight (kg) | 69kg | Working Power supply | 220V/110V; 50HZ/60HZ | |
| Outer packing size(L*W*Hmm) | 1240(L)*690(W)*640(H)mm80kg | lroning temperature | 160-170°C Cold /hot to tear | |
| Printing software | Maintop/photoprint | Power | Printer:350w ; powder dryer:2400W | |
| Language | Chinese/English | Three heating sections | Pre-heater, printing bed heater, rear heater 30*C-65C | |
